Product Overview
Rubber sheet is the most flexible product in the range: it becomes a chute liner, a tank lining, a gasket, a conveyor skirt or a wear pad, depending on what the customer needs. We produce sheet in the base polymer that suits the medium it will meet.
Sheets can be supplied smooth or with fabric impression finish, with or without textile insertion for dimensional stability, and cut to width or into strips and gaskets.
Key Advantages
- SBR, NBR, NR, EPDM, CR, butyl, Hypalon and silicone compounds
- Thickness 1 mm to 50 mm, widths to 2000 mm
- Plain, insertion (1 to 4 ply) or fabric impression finish
- Hardness 40 to 85 Shore A, tensile 3 to 20 MPa
- Abrasion, oil, acid, heat and ozone resistant grades
- Food grade and FDA compliant sheet available
Technical Specification
| Parameter | Specification |
|---|---|
| Polymers | SBR · NBR (nitrile) · NR · EPDM · CR (neoprene) · Butyl · Silicone · Viton on request |
| Thickness | 1 – 50 mm |
| Width | Up to 2000 mm, rolls or cut lengths |
| Hardness | 40 – 85 Shore A |
| Tensile strength | 3 – 20 MPa depending on compound |
| Insertion | None · 1 to 4 ply textile insertion |
| Finish | Smooth both sides · Fabric impression one or both sides |
| Standards | ASTM D2000 · GB/T 5574 · ISO 4637 · FDA / food grade on request |
Typical manufacturing range. Values can be adjusted to your drawing — confirm final specification with our engineers before ordering.
Why This Belt Performs
Oil, acid, heat, ozone or abrasion — we pick the polymer accordingly.
Textile insertion controls stretch where the sheet is bolted or clamped.
Supplied in rolls, cut lengths, strips or finished gaskets.
Hardness, tensile, elongation and ageing checked in-house.
Typical Applications
- Chute and hopper lining
- Tank and pipe lining
- Gaskets and sealing
- Conveyor skirting and wear pads
- Flooring and anti-slip surfaces
- Expansion joints

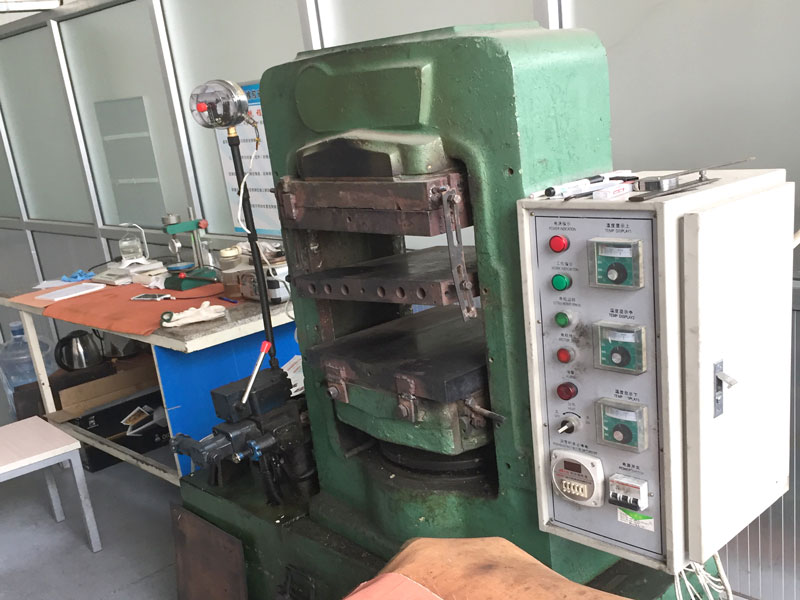

From Our Factory
